Domestic Disc Filter
Domestic Disc Filter

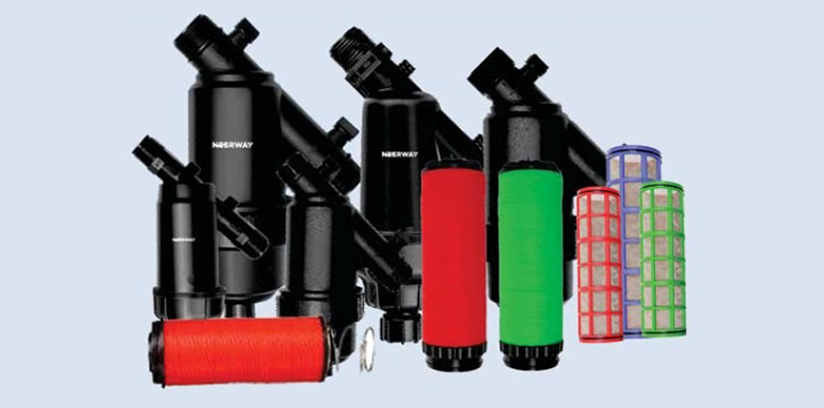

N 100 Series is manufactured with high resistant reinforced plastic material to remove sand & sediment from water.
| Model | Flow Range | Recommmended Flow | Filtration Surface(cm2) | H | X | D | Drain Point |
|---|---|---|---|---|---|---|---|
| 3/4" | 3-5 M3/H | 3 M3/H | 147 | 174 | 155 | 86 | 3/4" |
| 1" | 5-9 M3/H | 3 M3/H | 147 | 174 | 183 | 86 | 3/4" |
| 1-1/2 | 12-16 M3/H | 15 M3/H | 409 | 228 | 237.5 | 125.5 | 3/4" |
| 1-1/2 | 12-16 M3/H | 15 M3/H | 409 | 228 | 237.5 | 125.5 | 3/4" |
| 2" | 18-20 M3/H | 20 M3/H | 409 | 228 | 237.5 | 125.5 | 3/4" |
| 2" Super | 20-25 M3/H | 22 M3/H | 508 | 294.5 | 300.5 | 172 | 3/4" |
| Model | Flow Range | Recommmended Flow | Filtration Surface(cm2) | H | X | D | Drain Point |
|---|---|---|---|---|---|---|---|
| 3/4" | 4-6 M3/H | 5 M3/H | 120 | 174 | 155 | 86 | 3/4" |
| 1" | 5-8 M3/H | 7 M3/H | 147 | 174 | 183 | 86 | 3/4" |
| 1-1/2 | 12-16 M3/H | 15 M3/H | 295 | 228 | 237.5 | 125.5 | 3/4" |
| 1-1/2 | 12-16 M3/H | 15 M3/H | 409 | 228 | 237.5 | 125.5 | 3/4" |
| 2" | 18-22 M3/H | 20 M3/H | 295 | 228 | 237.5 | 125.5 | 3/4" |
| 2" Super | 25-25 M3/H | 25 M3/H | 480 | 294.5 | 300.5 | 172 | 3/4" |
