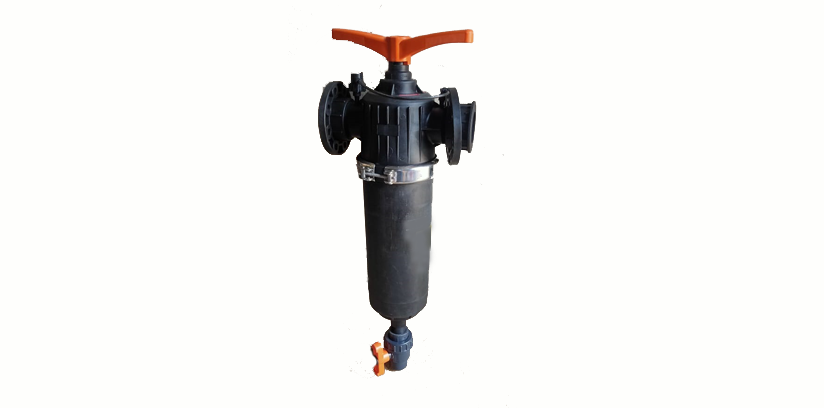

  • SEMI-AUTOMATIC DISC FILTER have 2 male threaded pressure port at the top for easy visibility of pressure.
  • Disc cartridge enabled with spring loaded for full compression of disc and loosen during cleaning.
  • Filter with Clogging indicator, Red pop up comes out at x 0.6 kg/cm² pressure differential, indicated end user to clean filter manually.
  • During cleaning operation, all inlet water passes through the pipe, and water jets removes dirt from the discs.
  • Barrel with 1½" Drain port
  • Handle for 90 degree rotation for cleaning of disc without dismantling of filter.
  • Disc housing fan gives hydro cyclonic effect which makes particles in suspension that reduces cleaning frequency.

Cleaning of the filter must be done when pressure differential across the disc reaches 0.5 kg/cm2 or when the clogging indicator red button pops up.

To start cleaning mode of filter, turn the handle (top of the filter) 90 degree in clockwise direction.

Cleaning operation starts, system pressure might increase during clearing operation.

When cleaning operation done, first filter handle direction should be at filtration mode. And then flushing valve gradually close.

In case the filter is still clogged (pressure indicator button is up). Repeat the above steps for effective disc cleaning.

Model NB200 NB300
Max. Pressure 8 kg/cm2 8 kg/cm2
Recommended flow 15 m3/hr 25 m3/hr
Range of Flow Rate 2-18 m2-18 m3/hr/hr 3-30 m3/hr
Filtration Degree Available 100/130/200 micron
Filtration Surface area 1080 cm2 1590 cm2
Inlet/outlet connection 2" BSP/NPT male thread 3" BSP/NPT male thread
Closing System Stainless Steel
Distance between End connections 341 mm 344 mm
Filter height (With Ball Valve) 800 mm 930 mm
Filter width (With End Plug) 235 mm 235 mm
Cartridge Diameter 121 mm 121 mm
Cartridge Length 375 mm 510 mm
Drain Valve (1no.) 1½" Female x Female threaded
End Plugs (1nos.) ¾" Male Threaded
